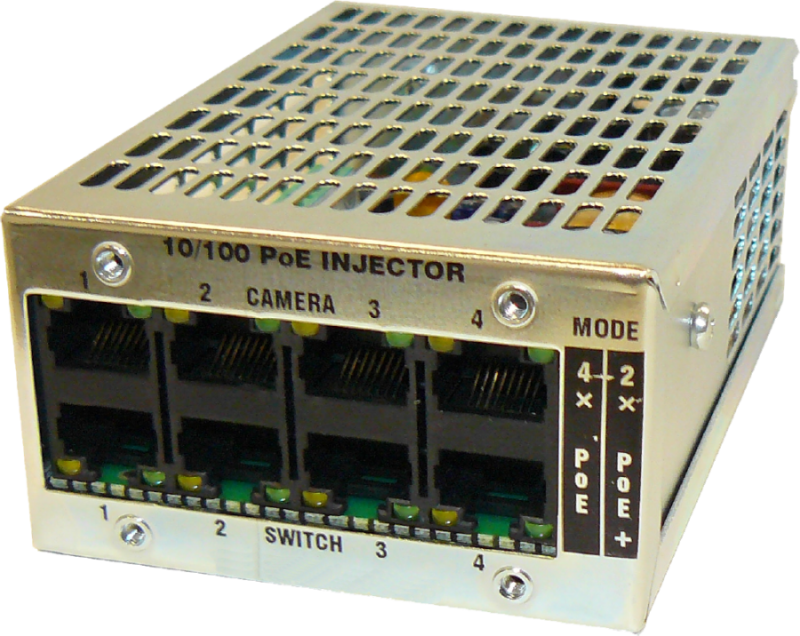

Ost A SPR60-48/PoE 4 PS INJECTOR Spider

logo-hds
Kategória: Napájacie zdroje
SKU: SPROST0031

Standard IEEE 802.3af IEEE 802.3at IEEE 802.3u; Interface 4 × 10/100 Mbps RJ45 LAN power + data output; No. of used ports depending on output power 4 x PoE (15.4W) or 2 × PoE+ (30.8 W); Used cable type 10BASE-T UTP CAT5E max. 100 m; 100BASE-TX UTP CAT5E max. 100 m; Connector pinout EIA/TIA-568; Input voltage 230 V ± 10% 47 … 63 Hz 0.77A; Rated power 60 W; Efficiency 85,00%; Output voltage


Dostupnosť: Skladom

Standard IEEE 802.3af IEEE 802.3at IEEE 802.3u; Interface 4 × 10/100 Mbps RJ45 LAN power + data output; No. of used ports depending on output power 4 x PoE (15.4W) or 2 × PoE+ (30.8 W); Used cable type 10BASE-T UTP CAT5E max. 100 m; 100BASE-TX UTP CAT5E max. 100 m; Connector pinout EIA/TIA-568; Input voltage 230 V ± 10% 47 … 63 Hz 0.77A; Rated power 60 W; Efficiency 85,00%; Output voltage 48 VDC; Degree of protection IP 20; Class of insulation I.; Built-in protections Short-circuit by PTC protection, overvoltage, overloading; Optical signal By green LED for each output; Ambient temperature limit range -10 °C … +40 °C; Storage temperature -10 °C … +70 °C; Ambient humidity 10 % … 80 %; Weight 0.34 kg; Dimensions (WxDxH mm) 77 × 110 × 45;


  • Značka

    Ost A
